Szczegóły Produktu:
|
| Size: | W1170x D570 x H240mm | Material: | Galvalume |
|---|---|---|---|
| Noise: | ≤54dBA | Air velocity: | 0.45m/s ±20% |
| Hepa filter: | W1170 x D570 x H69mm | HEPA filter efficiency: | H13 |
| High Light: | ffu fan filter,hepa filter fan |
||

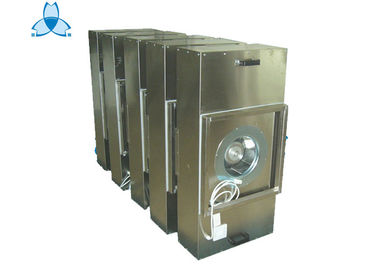

Galvalume Fan Filter Unit (FFU) With H13 HEPA Filter For Modular Clean Rooms
Features:
*Flexible design to suit various needs
we are equipped with great capabilities of customized design to suit various needs. External size can be altered to suit various type of GRID. Also,we provide professional solutions in respond to changes of external material case, special power supply, or changes of fan configuration
*Multi-level protective devices
FFU is equipped wuth over-current relay,motor protective device, fault indicator and fault signal circuit. Thermal protector, fuse and motor breaker and such can be applied upon request.
Standard Size and Specification
| Item Model | ZS-FFU610 | ZS-FFU915 | ZS-FFU1170 | ZS-FFU1220 | |
| Size for cabinet(mm) | 610x610x240 | 915x610x240 | 1170x570x240 | 1220x610x240 | |
| Material | Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304 | ||||
| Average Air flow(m3/h) | 600 | 900 | 1080 | 1200 | |
| Air velocity(Tested under filter300mm) | 0.35-0.6m/s | ||||
| ESP | 80-120pa | ||||
| HEPA filter | Size(mm) | 610x610x69 | 915x610x69 | 1170x570x69 | 1220x610x69 |
| Frame | Aluminum profile | ||||
| Media | Fiberglass | ||||
| Efficiency | H13 @0.3um | ||||
| Pressure Drop | ≤220pa | ||||
| Fan(motor) | Power | AC 220V/50Hz;AC110V/60Hz | |||
| Noise(dB) | 52 | 52 | 52 | 53 | |
| Optional | Control panel, Remote control, Pre filter, Pressure gauge | ||||
| Weight(KG) | 22 | 24 | 28 | 32 | |
Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air velocity speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
