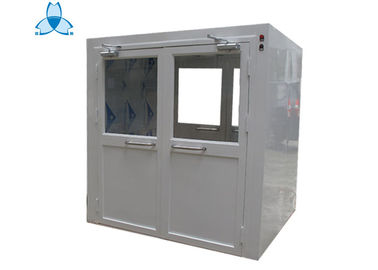

Big Area Dynamic Pass Box , Clean Room Pass Through Window With Double Leaf Swing Doors

Big Area Dynamic Pass Box , Clean Room Pass Through Window With Double Leaf Swing Doors
Big Area Dynamic Pass Box , Clean Room Pass Through Window With Double Leaf Swing Doors

Duży Obraz :  Big Area Dynamic Pass Box , Clean Room Pass Through Window With Double Leaf Swing Doors

Szczegóły Produktu:
Place of Origin: Guangdong, China (Mainland)
Nazwa handlowa: Zhisheng
Orzecznictwo: ISO9001
Model Number: ZS-FLP-1300
Zapłata:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 200sets per month

Big Area Dynamic Pass Box , Clean Room Pass Through Window With Double Leaf Swing Doors

Opis
External Material: cold rolled steel powder coated EX Dimension: W1700*D1600*H1800MM
In Dimension: W1500*D1500*H1700MM Door Lock: Mechanical Interlock
Application: Big Area Suitable: Big Goods
High Light:

clean room pass thru

,

dynamic pass box



Double Leaf Swing Doors Cold Rolled Steel Air Shower Pass Box With Electric nterlocked For Clean Room





Air shower pass box is used when materials enter a cleanroom from a ordinary room, or when materials enter a cleanroom of low cleanliness to one of high level of cleanliness. Air shower pass box removes dusts on the materials and avoids the dusts being brought to clean rooms. Cleanliness in the pass box can reach Class 100 after primary filters and HEPA filters. Widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy, auto glass and precision parts.





Features of Pass box :



Double-leaf Swing Doors

External dimension: W1700*D1600*H1800MM

Internal dimension: W1500*D1500*H1700MM





1 Door: Double-Leaf swing doors with half glass



2 . Door closer: 4 sets (90 degree hold open)



3 . Electric lock: 2 sets



4 . Lamp: 1x20W








Standard Features

  • Clear acrylic doors
  • Vinyl bulb gasket seals for the doors
  • stainless steel for inside
  • A mechanical interlock (except for units with fire rated doors)

Optional Features

  • HEPA filters
  • Fan filter units
  • Electric interlock system
  • Support brackets
  • Electro-polished finish for stainless steel pass box
  • Double wall construction (painted and stainless steel)
  • 304 Stainless Steel door frames with 1/4" thick clear tempered glass
  • Stainless steel/spring loaded door latch
  • UV light

Application

It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.
The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.

Standar size:


Model ZS-FLP-1300 ZS-FLP-1400 ZS-FLP1750
External dimensions (W x D x H) 820x560x1300 920x660x1400 920x660x1750
Size for working area ((W x D x H) 500x500x600 600x600x600 600x600x600
Material Cold rollled steel with powder coated for outside, stainless steel for inside and base
Lock type mechanical interlock
Windows Clear Acrylic sheet



Model ZS-CC1 ZS-CC2 ZS-CC3
External dimensions (W x D x H) 685x460x590 785x660x690 985x660x890
Size for working area ((W x D x H) 500x400x500 600x600x600 800x800x600
Material Cold rollled steel with powder coated for outside, stainless steel for base
Lock type Mechanical interlock
Windows Clear Acrylic sheet


we can offer special size and requirement as per our clients.

Drawing:


Big Area Dynamic Pass Box , Clean Room Pass Through Window With Double Leaf Swing Doors 0
Drawing of Pass Box

Big Area Dynamic Pass Box , Clean Room Pass Through Window With Double Leaf Swing Doors 1

Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.

Why you choose ZHISHENG Company ?

Professional service:

Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.

Delivery time:
Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.

After sales service:

We respect your feed back after receive the goods.
