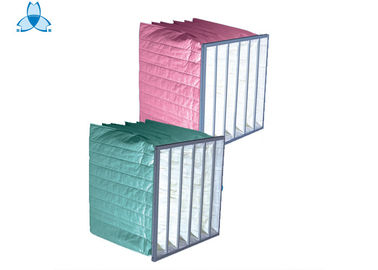

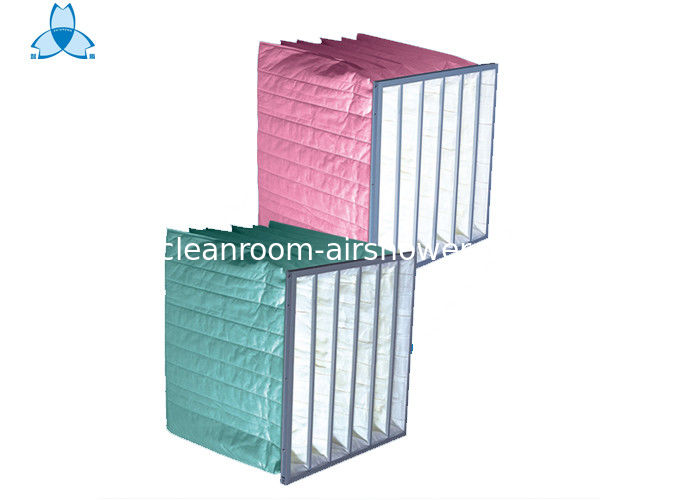

Rated Air Bag Synthetic Fiber Filter

Rated Air Bag Synthetic Fiber Filter

MOQ: 100 pcs
standard packaging: plywood case
Delivery period: about 15 days upon receipt of deposit
Supply Capacity: 1000 pieces
Detail Information
Place of Origin
Guangdong, China (Mainland)
Nazwa handlowa
Zhisheng
Orzecznictwo
ISO9001, Rohs
Model Number
ZS-F7
Construction:
bag filter
Material:
fiberglass
Class:
F7
Size:
24*12*20 inch
Color:
yellow/orange/purple/primrose yellow
Application:
high efficiency air filters
Minimum Order Quantity:
100 pcs
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Supply Ability:
1000 pieces
High Light:

bag filter systems

,

air bag filter

Product Description



Rated Air Flow 1600 m3 / h - 3200 m3 / h For Pocket Air Filter



Features1:



1. Collect 1 to 5 micron particles. Between each pocket has a metal stick to make frame more firm, and the separation material of each pocket can avoid the filter over expanded under the pressure.

2. Ultrasonic sealing make the filter more strong and not easy to broke

3. Adopt fine synthetic fiber instead of some fiberglass material

4. Material has antistatic fiber, large dust holding capacity and long working life.

5. Pocket mesh efficiency has five different type for choice: 45%, 65%, 85%, 95%, 98%.

6.Firm structure, large dust holding capacity, large air flow.

7.There are F8 (yellow,90-95%), F7 (Pink,75-85%), F6 (green, 60-70%), F5 (White,40-50%) available, with aluminum alloy, stainless steel or galvanized steel frame for selection.

8.Applicable in electronics, precision machinery, instruments, machinery, food and other industries and medium filtering for general air-conditioning ventilation systems.





Features2:



Product type Synthetic fiber pocket filter for second stage gas turbine
Media Synthetic fiber(3-layer) / Mircro glass fiber
Frame Galvanized /Aluminum /ABS plastic
Class F5-F9 (EN799)
Average Efficiency 45%; 65%; 85%; 95%;
Media color White, Orange(Green), Pink, Yellow
Initial pressure drop 50-120 pa (0.2-0.48 WG)
Final pressure drop 200-500 pa(0.8-2 WG)
Operating temperature 80 ºC
Humidity resistance: 100%



Application:Pocket filter is widely used as a secondary filter for central air conditioning or air handling unit.

For use in areas that require a high degree of air cleanliness including hospitals, schools, industrial facilities and office complexes. Pocket filters excel in both dust holding capacity and filter efficiency. Greater dust holding capacity means longer service life and lower operating costs



Standard size and specification:



Model Outside dimensions(mm) (WxHxD) Rated air flow(m3/h) Initial resistance (Pa) Efficiency (class) Pockets Material
Dust-spot EN799 Frame Media
ZS-F5 495x295x500 (20”x12”x20”) 1000 50Pa 40-50% F5 (White / Yellow) 5

Aluminum /Galvanized Sheet/

plastic

Non-woven fabric (synthetic fiber)

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F6 495x295x500 (20”x12”x20”) 1000 55Pa 60-70% F6 (Orange /Green) 5

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F7 495x295x500 (20”x12”x20”) 1000 110Pa 75-85% F7(Pinky) 5

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F8 495x495x500 (20”x20”x20”) 1800 120Pa 90-95% F8(Yellow) 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6







Packing:



Rated Air Bag Synthetic Fiber Filter 0



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
