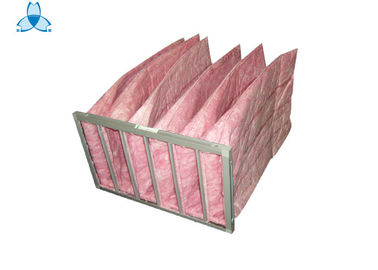

Pink F7 Air Filter Aluminum Alloy Frame , 6 Pockets Air Handler Filters

Pink F7 Air Filter Aluminum Alloy Frame , 6 Pockets Air Handler Filters

MOQ: 100 pcs
standard packaging: plywood case
Delivery period: about 15 days upon receipt of deposit
Supply Capacity: 1000 pieces
Detail Information
Place of Origin
Guangdong, China (Mainland)
Nazwa handlowa
Zhisheng
Orzecznictwo
ISO9001, Rohs
Model Number
ZS-F7
pockets:
6 pockets
Material:
fiberglass
Class:
F7
Size:
595*595*500mm
Color:
color purple
Application:
air conditionings
Minimum Order Quantity:
100 pcs
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Supply Ability:
1000 pieces
High Light:

bag filter systems

,

hvac hepa filter

Product Description



Colorimetry 80-85% Effiency f7 Purple Pocket Air Filter With 6 Bags



Introduction



Air Filter Pocket Filter Bag Filter G4 F5 F6 F7 F8 mainly be used on central air-conditioning and centralized ventilation system. It can be used as primary, medium and senior filter to protect inferior filter of system and itself. Bag air filter always adopt flat, diamond, honeycomb and V type bag. It adopts special process of ultrasonic heat sealing process which replaced the original process and avoid dust leakage on pinhole office as wellas enhance filter efficiency. The amount of small V type bag is determined by equipment's condition of using factory.



Specification of Air Filter Pocket Filter Bag Filter G4 F5 F6 F7 F8



Features:



Product type Synthetic fiber pocket filter for second stage gas turbine
Media Synthetic fiber(3-layer) / Mircro glass fiber
Frame Galvanized /Aluminum /ABS plastic
Class F5-F9 (EN799)
Average Efficiency 45%; 65%; 85%; 95%;
Media color White, Orange(Green), Pink, Yellow
Initial pressure drop 50-120 pa (0.2-0.48 WG)
Final pressure drop 200-500 pa(0.8-2 WG)
Operating temperature 80 ºC
Humidity resistance: 100%



Application:Pocket filter is widely used as a secondary filter for central air conditioning or air handling unit.

For use in areas that require a high degree of air cleanliness including hospitals, schools, industrial facilities and office complexes. Pocket filters excel in both dust holding capacity and filter efficiency. Greater dust holding capacity means longer service life and lower operating costs



Standard size and specification:



Model Outside dimensions(mm) (WxHxD) Rated air flow(m3/h) Initial resistance (Pa) Efficiency (class) Pockets Material
Dust-spot EN799 Frame Media
ZS-F5 495x295x500 (20”x12”x20”) 1000 50Pa 40-50% F5 (White / Yellow) 5

Aluminum /Galvanized Sheet/

plastic

Non-woven fabric (synthetic fiber)

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F6 495x295x500 (20”x12”x20”) 1000 55Pa 60-70% F6 (Orange /Green) 5

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F7 495x295x500 (20”x12”x20”) 1000 110Pa 75-85% F7(Pinky) 5

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F8 495x495x500 (20”x20”x20”) 1800 120Pa 90-95% F8(Yellow) 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6







Packing:



Pink F7 Air Filter Aluminum Alloy Frame , 6 Pockets Air Handler Filters 0

Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
